DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 1

DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 1 DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 2 DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 3 DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 4
DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 5 DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Product Image 6
Click to enlarge. Images representative

DIM10 - Power Boosting Slave LED Dimmer

10A Power Booster and Solid State Relay for DIMxx series.

Features:

  • Slave Dimmer for LEDs or Incandescent Lamps
  • 10A High-Side Output
  • 9-32V DC Supply Range
  • No-Flicker Operation
  • Extremely efficient and environmentally friendly
  • Requires PWM input from one of our other dimmers
  • Volume pricing and OEM branding available

DIM10 datasheetDatasheet: DIM10.pdf


DIM10 - £43.20Add DIM10 to basket

See Also...
DIM10HPE product imageDIM10HPE - High Power Slave LED Dimmer, IP68

< Back to Low Voltage LED Dimmers


 OverviewSpecificationConnection DiagramDimensional DrawingRelated Products

The Abeltronics DIM10 is a high frequency solid state relay that is designed to boost the power rating of the Abeltronics DIMxx series Dimmer Modules. Operating from 12V or 24V, the DIM10 has a slave control input that is designed to connect to the output of the other dimmer modules in the series.

The DIM10 switches its output on when the Control Input terminal exceeds 5V, and off when the control input goes below 2V. The output can be any resistive load up to 10A such as incandescent or halogen lamps, or LEDs or LED panels. Up to one hundred DIM10s can be connected to the master module, and the DIM10 outputs can be paralleled, providing a total dimming capacity of up to 12kW of low voltage lighting.

The units are hermetically sealed and potted in an ABS enclosure with epoxy resin, and are fully protected against water and oils.

The DIM10 is a slave dimmer, and must be connected to either a DIM11, DIM12, DIM13, DIM14 or DIM15 to provide it with a PWM signal. Each DIM10 module must have its +Supply terminal fused separately at 10A or less. The controlling module (either the DIM11, 12, 13, 14 or 15) can have its +Supply fused at 1A.

The DIM10 requires a PWM control signal from one of the other DIMxx series modules which is applied to the control input terminal. Power is supplied to the +Supply terminal from a 9 - 32V DC source fused at 10A. The terminal marked 'no connection' is a dummy terminal and not connected to anything inside the module.

The module can also be used as a low voltage solid state relay. The output will be on for as long as the control input is above about 5V (referenced to the DIM10's Earth terminal). The output will turn off when the control input falls below about 2V. Although the module is designed to work at the 240Hz frequency of the other DIMxx series modules, the input frequency can be up to 2kHz; finding applications where a mechanical relay is far too slow.




DIM10 Specifications

ParameterDIM10Comment
DatasheetDIM10 datasheet
Nominal Supply Voltage Range9 - 32 V DC
Peak Supply Voltage Range5.5 - 40 V DCOperation not guaranteed
Output TypeHigh-Side Positive
PWM Switching Frequency240Hz, 0% - 100% Duty Cycle+/- 3%
Maximum Load Current10A
Non-Sustained Peak Output Current30A< 3sec
Maximum Load120W (12V), 240W (24V)
Control Input TypeSlave PWM
Quiescent Current, max0.01mANo-load operating current at maximum operating voltage
Efficiency>97%
Electrical Connection4mm2 rising clamp terminal block
Enclosure StyleEpoxy Potted ABS

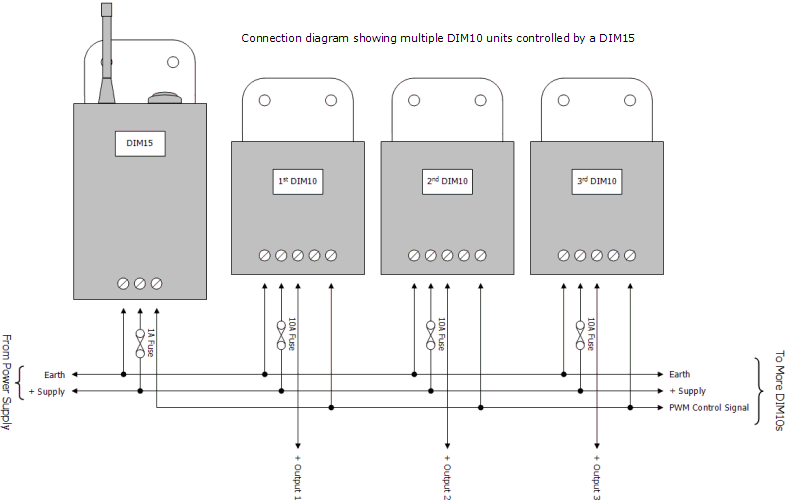

DIM10 Typical Connection Diagram

DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Connections Diagram 1

DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Connections Diagram 2




DIM10 Dimensional Drawing

DIM10 Slave Low Voltage LED Dimmer and Power Booster, 10A - Dimensional Drawing 1
