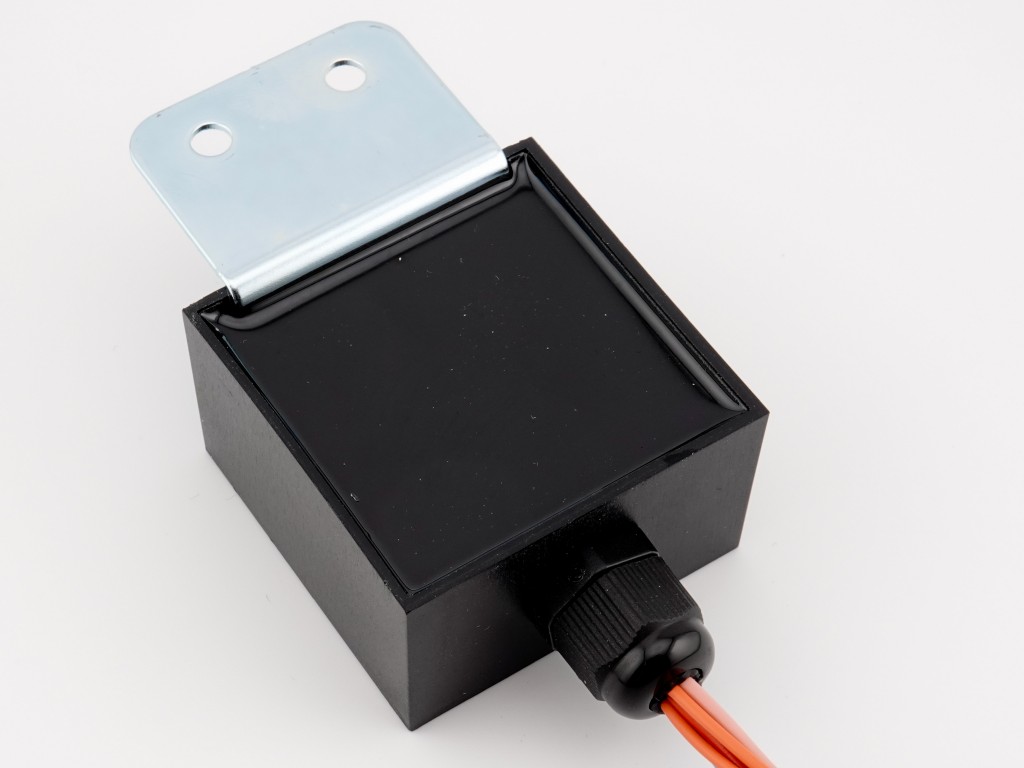

DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 1

DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 1 DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 2 DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 3 DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 4
DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 5 DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 6 DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 7 DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Product Image 8
Click to enlarge. Images representative

DIM12-2W - Dual Output Potentiometer LED Dimmer, IP68

PWM Lamp/LED dimmer module, 12V or 24V, 5A (60W at 12V, 120W at 24V) per channel. Dual Complementary outputs, IP68 rated (fully waterproof) and wire ended. Controlled by panel mounted potentiometer. Ideal for marine or automotive dash-panel applications where backlighting and instrumentation illumination needs to be dimmed together.

Features:

  • Dimmer for LEDs or Incandescent Lamps
  • Dual common positive and common negative outputs
  • Wire ended, IP68 rated
  • 240Hz Pulse Width Modulation
  • 2x 5A Output
  • 9-32V DC Supply Range
  • No-Flicker Operation
  • Cube-law gamma correction
  • Extremely efficient and environmentally friendly
  • Rotary potentiometer control
  • Volume pricing and OEM branding available

DIM12-2W datasheetDatasheet: DIM13-2DIN_DIM13-2W_DIM12-2W.pdf


DIM12-2W - £66.00Add DIM12-2W to basket

See Also...
ENCPOT10K product imageENCPOT10K - Enclosed Pot for DIM12 Series
DIM13-2W product imageDIM13-2W - Dual Output Dual Switch LED Dimmer, IP68
DIM13-2DIN product imageDIM13-2DIN - Dual Output Dual Switch DIN LED Dimmer

< Back to Low Voltage LED Dimmers


 OverviewSpecificationConnection DiagramDimensional DrawingRelated Products

The DIM12-2W is a IP68 rated waterproof dual output low voltage 12V or 24V PWM lamp LED dimmer module specifically designed to simultaneously dim positively switched and negatively switched lamps. This is useful in control panel applications where the switched positive instrument backlighting and common negative indicators or illuminated switches need to be dimmed at the same time.

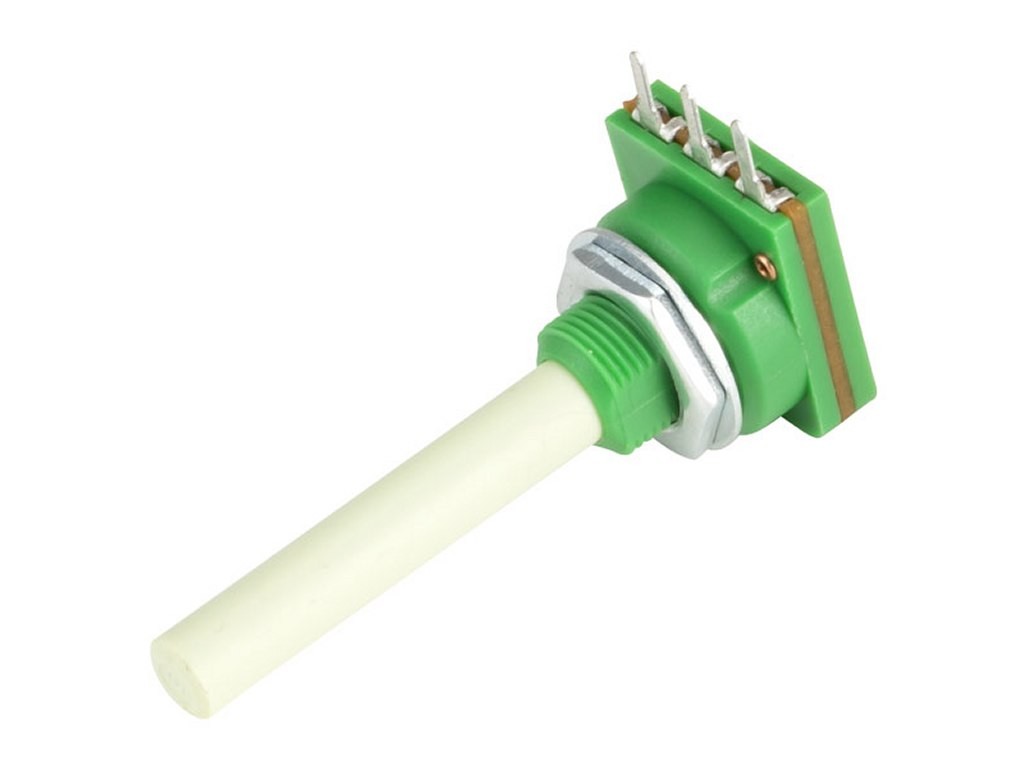

The unit is controlled by a panel mounted potenetiometer (supplied). The module is fully ingress protected and wire-ended, and ideal for use in harsh industrial environments or for marine applications.

Please Note:

The 'i' option on the end of the part number formerly meant 'improved dimmer' where the dimming response and transient voltage immunity were improved. All dimmers manufactured since early 2016 are now 'improved' whether the 'i' is present or not. This option is therefore now redundant, but still exists in some part numbers.

Therefore, as of 2016, a DIM12-2Wi and DIM12-2W are exactly the same product.




DIM12-2W Specifications

ParameterDIM12-2WComment
DatasheetDIM12-2W datasheet
Nominal Supply Voltage Range9 - 32 V DC
Peak Supply Voltage Range5.5 - 40 V DCOperation not guaranteed
Number of Outputs2
Output TypeComplementary Positive and Negative
PWM Switching Frequency240Hz, 0% - 100% Duty Cycle+/- 3%
Maximum Load Current5A per output
Non-Sustained Peak Output Current12A per output< 3sec
Maximum Load60W (12V), 120W (24V) per output
Control Input TypeRemote Potentiometer
Quiescent Current, max19mANo-load operating current at maximum operating voltage
Efficiency>97%
Ingress Protection (IP Rating)IP68
Electrical ConnectionWire-ended, 6x 30cm
Enclosure StyleEpoxy Potted ABS



DIM12-2W Typical Connection Diagram

DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Connections Diagram 1




DIM12-2W Dimensional Drawing

DIM12-2W LED Dimmer. Dual Output Potentiometer Controlled. IP68 Waterproof, 12V 24V 5A Low Voltage - Dimensional Drawing 1
