FOG-901 - Momentary Switch Converter

Momentary Switch Converter converts a momentary press of a button to a latching toggle output

Features:

  • Converts momentary switch into toggle action
  • 12V Supply
  • Output up to 5A

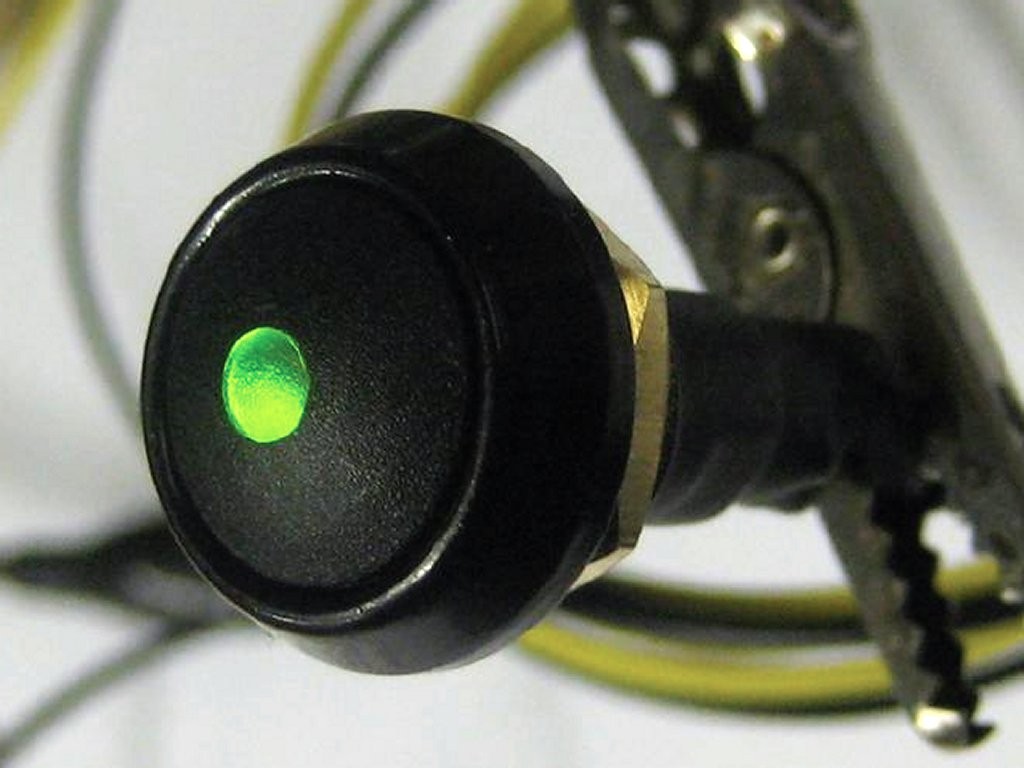

  • Illuminated switch shows state of output:
  • Switch lights up dimly when output is off - easy to spot it in the dark
  • Switch lights up brightly when output is on
  • Uses ANY momentary switch (illuminated or otherwise)
  • Self-cancelling
  • Hermetically sealed in epoxy resin – IP68 rated

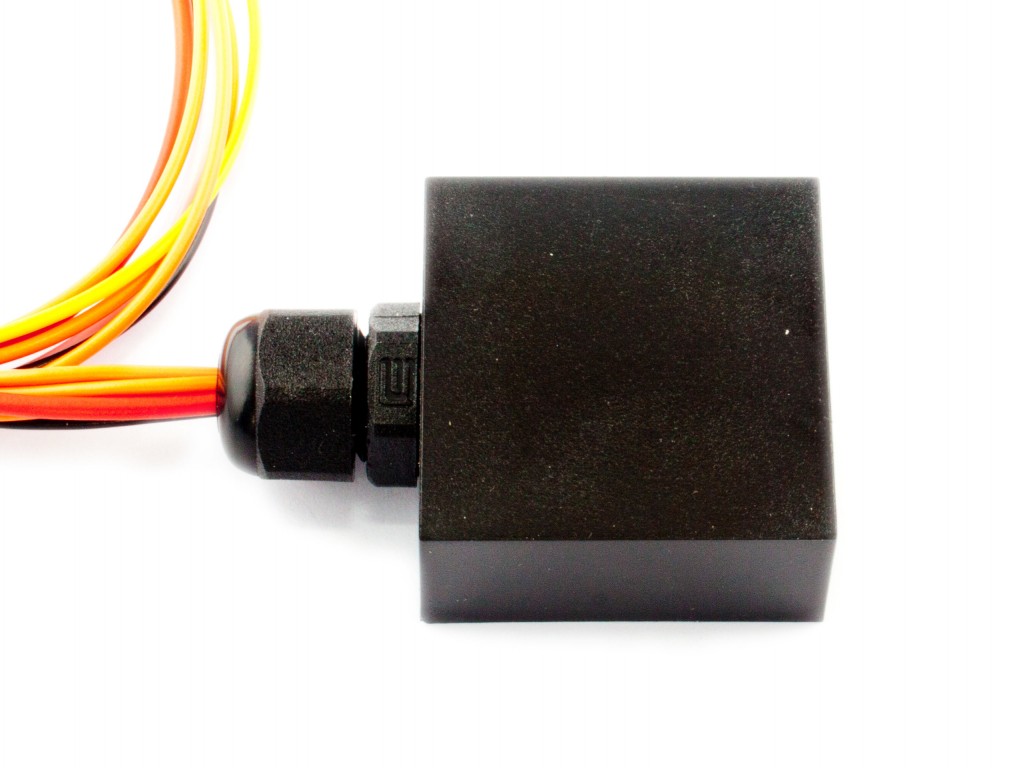

  • Small size enclosure (40 x 40 x 20mm)
  • Extremely reliable

FOG-901 datasheetDatasheet: FOG-901-FOG-901NP.pdf


FOG-901 - £24.00Add FOG-901 to basket

See Also...
FOG-901NP product imageFOG-901NP - Momentary Switch Converter, Non-Potted

< Back to Toggle Relays


 OverviewConnection DiagramRelated Products

Allows an illuminated momentary pushbutton switch to be converted into a toggle action button. Rated at 5A, 12V DC

A brief press of the switch turns the output on, another brief press turns the output off. An illuminated switch lights up dimly when the output is off allowing the user to locate the switch in the dark. When the output is on, the switch lights up brightly to indicate the load is on.

The switch only requires one wire to the FOG-901, the other end of the switch is connected to ground. This is useful is the switch is located remotely from the FOG-901 as is reduces the wiring required.

Switch not supplied, we recommend this switch.




FOG-901 Typical Connection Diagram

FOG-901 Momentary Switch to Latching Switch Converter, Toggle Action - Connections Diagram 1
